H-MRL hydraulic system in cabinet

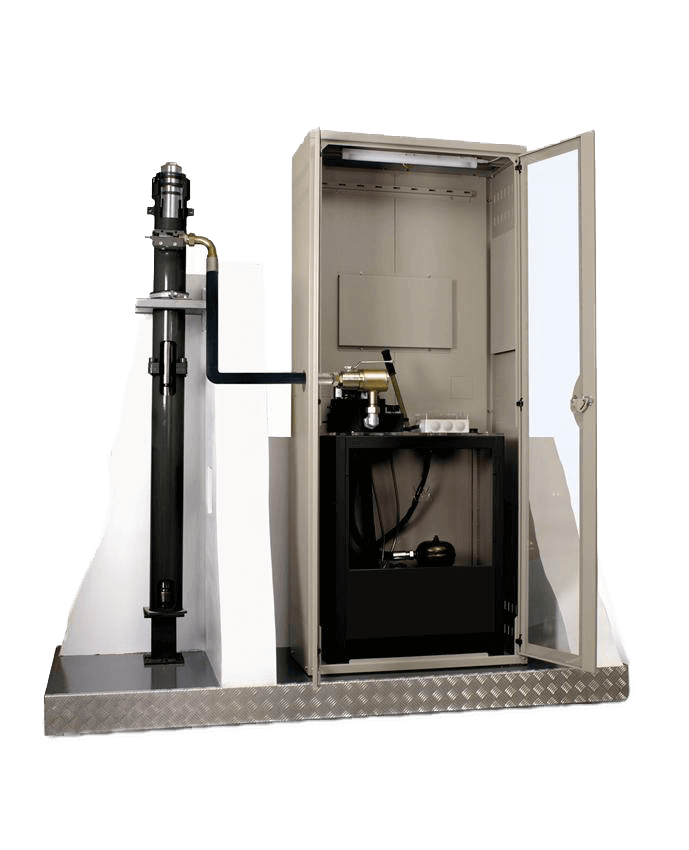

The Compact hydraulic system in cabinet MRL for machine roomless

With this solution is possible to install the hydraulic system in a standard control panel, without machine room necessary.

  • Compact system designed for buildings without machine room
  • Fast assembly
  • Easy mantenance
  • High standard quality to garantee comfort and efficiency
  • Pump units HM, HE, HI, HC
  • Tanks from 40 to 320/S
  • Motors from 22 to 29,4 kW
  • Pumps from 25 to 300 l/min
  • Dimensions cabinets (PxLxA – mm) :  410x730x1550, 520x800x1550, 400x900x2100, 580x1120x2100
  • Custom colors and dimensions
  • Inverter solution to garantee maximum energy saving
