OMARLIFT

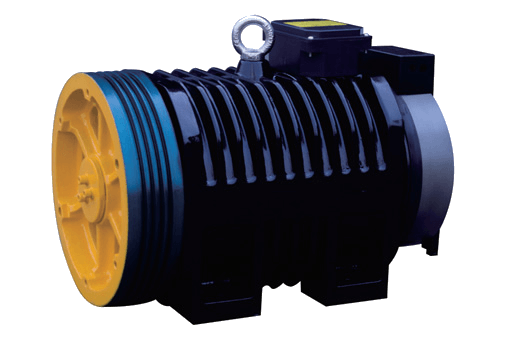

STELVIO

Gearless motors for MRLs and machine room

Gearless motors for MRLs and machine room

  • Rated voltage: AC380V

  • Brake Voltage: DC205V

  • Weight: 200 kg

  • Max. Load: 3000 kg

  • Wrap: Single

  • Insulation: F

  • Protection: IP41

  • Travel height: <= 60 m

GEARLESS MANUAL TECHNICAL DESIGNS DATA SHEETS DATA LABEL CERTIFICATES
Range of Products
Capacity (kg) Roping Sheave Dia (mm) Ropes Speed (m/s) Brake Brake Voltage Rated Ouput (kW) Rated Current (A) Poles (2p) Torque N.m Frequency (Hz)
480 1:1 240 8 x Ø6.5 x 10 1 Disc Brake DC 205V 3.0 8 20 324 13.3
480 2:1 240 5 x Ø6.5 x 10 1 Disc Brake DC 205V 3.0 8 20 270 26.4
630 2:1 240 6 x Ø6.5 x 10 1 Disc Brake DC 205V 4.2 10 20 270 26.4
800 2:1 240 8 x Ø6.5 x 10 1 Disc Brake DC 205V 5.3 12 20 340 26.4
1000 2:1 320 6 x Ø8 x 12 1 Disc Brake DC 205V 6.6 15 20 536 19.9
