OMARLIFT

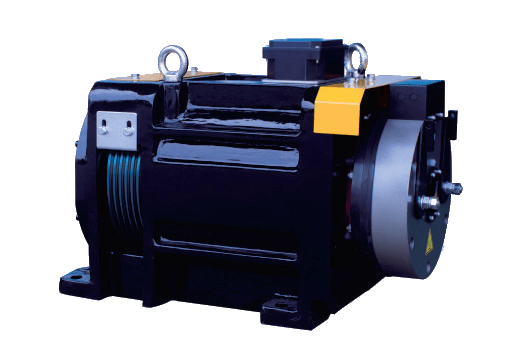

ETNA

Gearless motors for MRLs and machine room

Gearless motors for MRLs and machine room

  • Rated voltage: AC380V

  • Brake Voltage: DC205V

  • Weight: 380 kg

  • Max. Load: 5000 kg

  • Wrap: Single

  • Insulation: F

  • Protection: IP41

  • Travel height: <= 60 m

GEARLESS MANUAL TECHNICAL DESIGN TECHNICAL DESIGN CERTIFICATES
Range of Products
Capacity (kg) Roping Sheave Dia (mm) Ropes Speed (m/s) Brake Brake Voltage Rated Ouput (kW) Rated Current (A) Poles (2p) Torque N.m Frequency (Hz)
1250 2:1 320 10 x Ø8 x 12 1 Disc Brake DC 205V 8.4 20 20 669 19.9
1600 2:1 320 12 x Ø8 x 12 1 Disc Brake DC 205V 10.7 26 20 857 19.9
